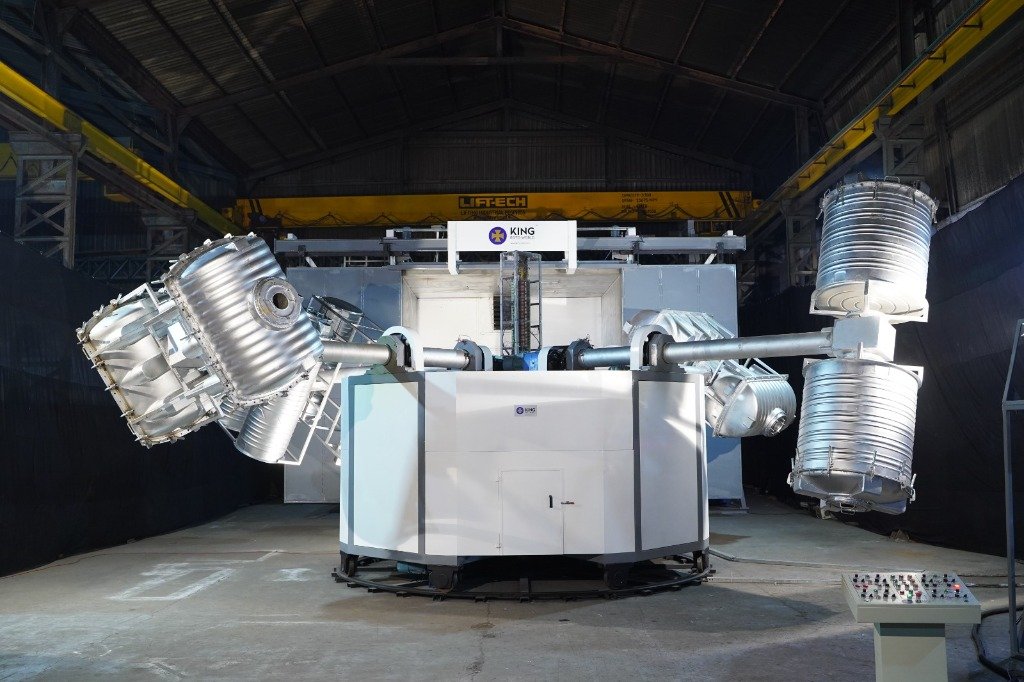

KING ROTO BI-AXIAL ROTOMOULDING MACHINE
Engineered for Precision. Built for Performance.
Powerful Rotation. Uniform Moulding. Reliable Production.
Engineered for Precision. Built for Performance.
King Roto Bi-Axial Rotomoulding Machines are engineered for manufacturers who demand consistent quality, dependable performance and flexible production capabilities. Designed as a heavy-duty, precision-controlled industrial solution—not simply as a "tank making machine"—the mould rotates smoothly around two independent axes while being heated in an insulated chamber. This biaxial process delivers exceptional wall thickness uniformity for hollow, seamless products and complex moulded geometries. From water tanks and chemical containers to industrial components, road barriers, agricultural products, material-handling products, and custom moulded parts, King Roto machines are engineered according to your specific production requirements.
Why Choose King Roto Bi-Axial Machines?
Engineered around high reliability, structural strength, and tight process control across heating and cooling cycles.

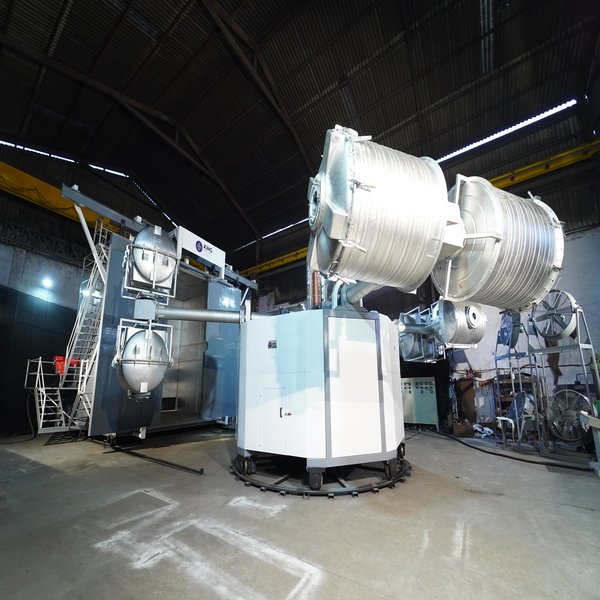

True Bi-Axial Rotation
Independent major-axis and minor-axis rotation provides controlled mould movement throughout the heating and cooling cycle.
Precision Speed Control
Variable Frequency Drive (VFD) technology provides independent, adjustable rotational speeds for optimized material distribution.
High-Performance Heating System

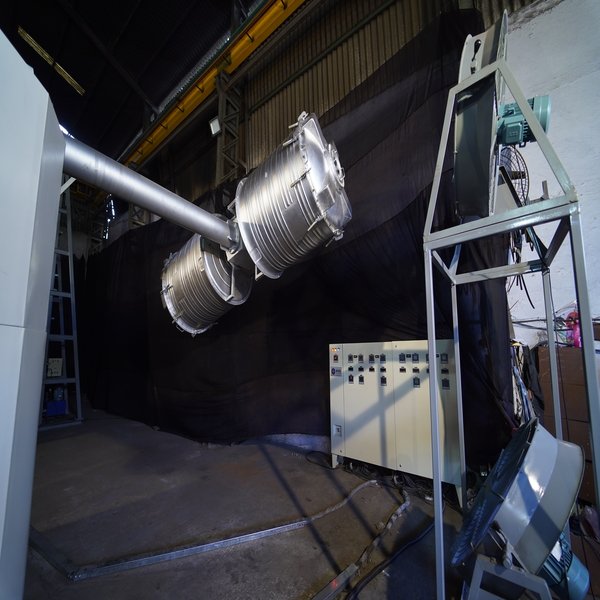

Insulated oven chamber with forced hot-air circulation distributes heat efficiently and evenly around rotating moulds.
Intelligent PLC Control
PLC and HMI-based controls give operators intuitive access to speeds, cycle timers, temperature recipes, and diagnostics.

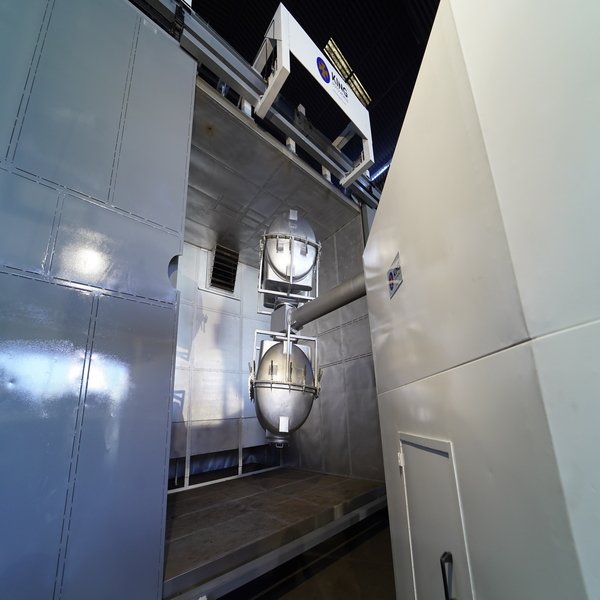

Flexible Arm Configuration

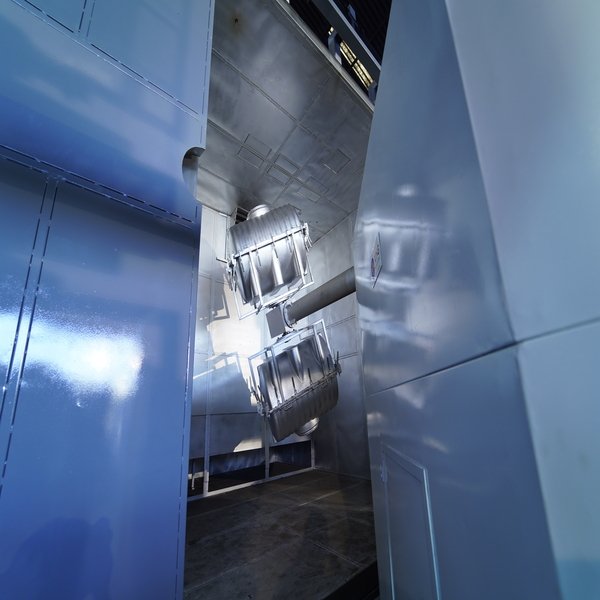

Straight-arm and offset-arm configurations engineered according to mould dimensions, product geometry, and machine capacity.
Efficient Cooling Station
Dedicated cooling station incorporates controlled air circulation and optional water-mist cooling to streamline cycle times.
Designed for Safety
Incorporates safety guarding, emergency stops, door interlocks, electrical overload protection, and status alarms.
Robust Fabricated Steel Structure
High-rigidity structural frame provides operational stability and long service life under continuous multi-shift production.
Key Machine Advantages
Precision Rotation
Controlled movement on both axes helps maintain an optimized moulding cycle and consistent wall thickness.
Strong & Durable Construction
Engineered specifically for demanding, heavy-duty industrial production environments.
Flexible Production
Suitable for multiple mould sizes, multi-cavity frames, and diverse rotationally moulded applications.
Easy Operation
Operator-friendly PLC/HMI architecture simplifies machine monitoring, recipe selection, and parameter adjustment.
Process Repeatability
Programmable operating parameters help manufacturers maintain consistent batch-to-batch production quality.
Energy-Conscious Design
Proper oven insulation, airflow management, and optimized burner configurations improve overall thermal efficiency.
Easy Maintenance
Service-friendly layouts provide convenient access to motors, gearboxes, burners, and electrical components.
Custom Engineering
Oven size, arms, mould swing, burner type, and level of automation are customized to client specifications.
King Roto Bi-Axial Machine CAD General Arrangement
King Roto provides comprehensive general-arrangement CAD concepts illustrating oven chamber dimensions, biaxial arm/mould swing envelope, cooling station clearances, PLC panel positioning, and total floor layout.
⚠ Drawings are marked 'Not for Fabrication' — final structural and clearance dimensions will be engineered to King Roto approved project values.
The Engineering Behind The Machine.
Exact dimensions, arm loads, motor ratings, burner capacities, cycle times, and output specifications are tailored to customer factory layout, mould sizes, and throughput targets.
Standard, semi-automatic, and fully automated configurations are available based on project scope and regional plant requirements.
| Parameter | Specification |
|---|---|
| Machine Type | Bi-Axial Rotational Moulding Machine |
| Rotation | Major Axis + Minor Axis |
| Rotation Control | Independent Variable Speed (VFD) |
| Drive System | Geared Motor with VFD Control |
| Machine Structure | Heavy-Duty Fabricated Steel Construction |
| Oven Type | Insulated Forced Hot-Air Oven |
| Oven Size | Customised as per requirement |
| Maximum Mould Swing Diameter | Customised according to model |
| Maximum Mould Load | Model dependent |
| Arm Configuration | Straight / Offset / Custom |
| Heating System | Industrial Burner / Heating System as specified |
| Fuel Configuration | LPG / Natural Gas / Diesel / Dual Fuel |
| Temperature Control | Digital / PLC-Controlled |
| Main Control | PLC + Touchscreen HMI |
| Cooling System | Forced Air / Air + Water Mist Option |
| Process Timer | Programmable via HMI |
| Major Axis Speed | Variable Speed |
| Minor Axis Speed | Variable Speed |
| Electrical Supply | Industrial Three-Phase Supply (415V, 50/60 Hz) |
| Control Panel | Industrial Electrical Control Panel |
| Safety System | Emergency Stop, Interlocks & Protection Systems |
| Machine Capacity | Customised according to production requirement |
| Automation Level | Manual / Semi-Automatic / Automated Configuration |
| Installation & Commissioning | Available according to project scope |
| Operator Training | Available on-site according to project scope |
| After-Sales Support | Lifetime Service & Technical Support |
Built Around Your Production
Every rotomoulding requirement is different. That is why King Roto focuses on developing machines around the customer's mould size, product dimensions, production capacity, floor space, heating requirements, automation level, and future expansion plans. From machine concept and mechanical engineering to fabrication, controls, installation, and technical support, our focus is to deliver a rotomoulding solution engineered for dependable production.
Shaping Strength. Delivering Perfection.
Looking for the right Bi-Axial Rotomoulding Machine for your production line? Talk to King Roto about your product size, mould dimensions, and required production capacity.
